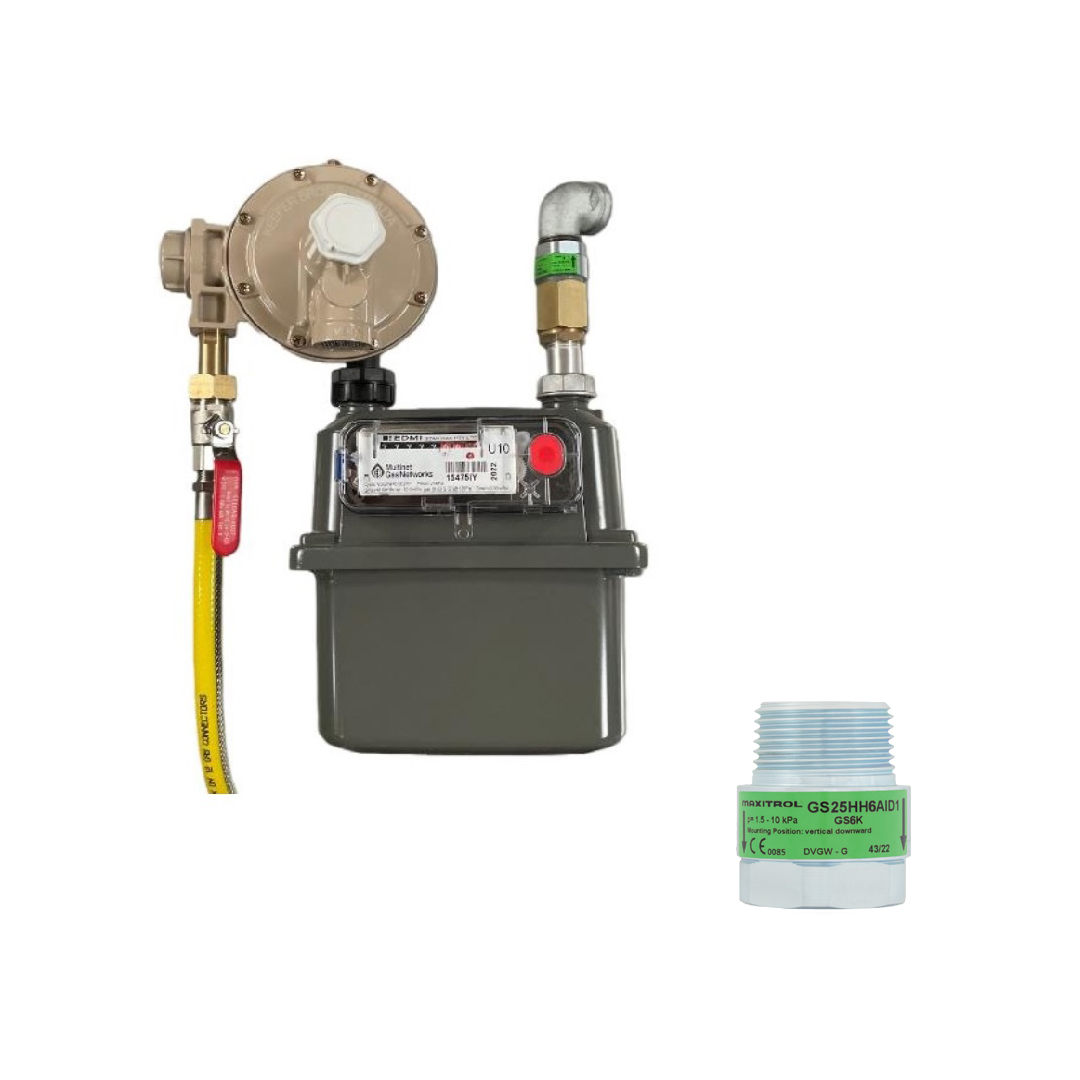

8216 Excess Flow Valve To Suit Medium Gas Meter (NSW) Horizontal Flow
Box QTY
20
- Orientation: Male Inlet X Female Outlet
- Flow Direction: Vertical-up / Horizontal
- Thread Standard: DN25 ISO 7(Rp.)
- Model Series: GS25-6Z Sentry EFV
- Working Pressure: 15mbar - 100mbar
- GAS Meter Model: Model U10 10 m3/h
- P-max Flow: p-max 10m3/h = 400Mj/Hr
- Nominal flow: 6.0 m3/h - (8.70 m3/h)
- Shut-off: Shut-Off = 350Mj.
