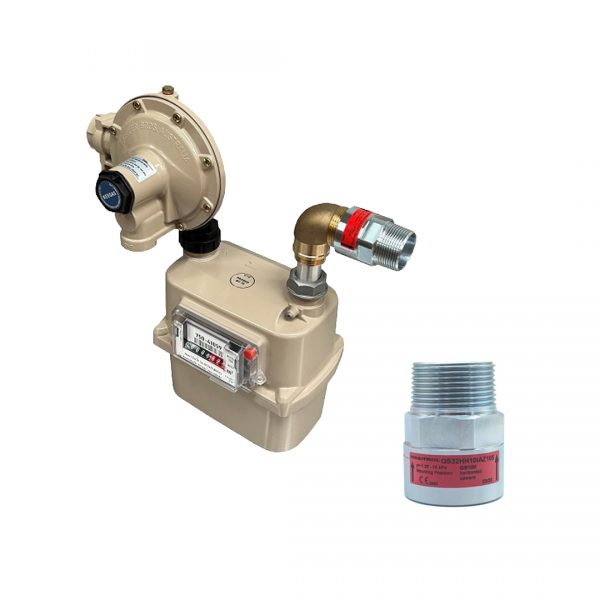

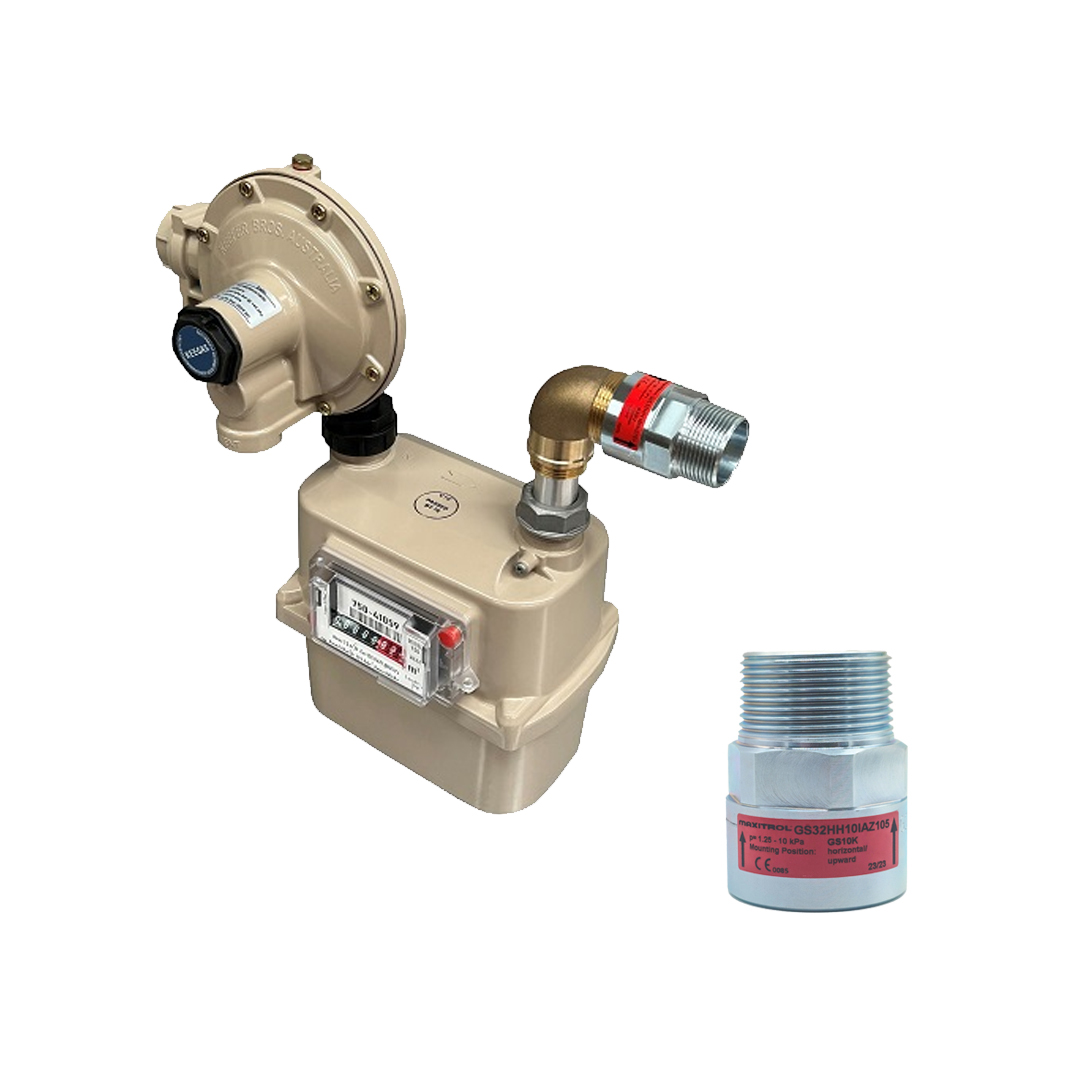

8217 Excess Flow Valve 32mm Horizontal & Vertical Upwards Flow w/ Elbow
- Model Series: GS32Z Sentry EFV
- Working Pressure: 15mbar - 100mbar
- GAS Meter Model: Model AL425 17 m3/h
- P-max Flow: p-max 17m3/h = 655Mj/Hr
- Nominal flow: 10.0 m3/h - (14.5 m3/h)
- Shut-off: Shut-Off 580Mj.
- Orientation: Fem Inlet X Male Outlet
- Flow Direction: Horizontal or Vertical Upwards
- Includes 32mm x 20mm elbow
- Thread Standard: DN32 ISO 7(Rp.)
